12MT Hydraulic Tank Jacks

12MT Hydraulic Tank Jacks

Suryoday Technologies 12MT Hydraulic Tank Jacking Equipment with complete accessories are designed to meet the process requirements of fabrication of above-ground bulk liquid storage tanks.

We are committed to providing the best quality 12MT Hydraulic Tank Jacks which is manufactured using the finest raw materials that are all sourced locally from India! Neither our raw material nor any other components are imported from another country.

The equipment is not just visually inspected, but also goes through rigorous testing (load and pressure testing) along with thorough QC checks at all stages. Suryoday Technologies 12mt tank jacks are meticulously packed in sea-worthy wooden box packing (for export) and shipped all across the world. All components are efficiently packed in standard stretch-film wrapping for all our domestic clients.

Components of 12MT Hydraulic Tank Jack Set

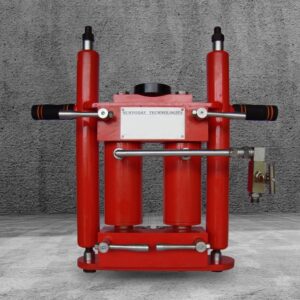

  • Hydraulic Tank Jack Unit
  • Base Plate
  • Stay Pipes
  • Trestle Box
  • Sliding Chair & LIfting Arm
  • Loading Point
  • Lower Lug
  • Upper Lug
  • 1" Stud
  • Nut Bolt Sets
  • High Pressure Hydraulic Hose
ISO 2001:2015 badge

Product Details

  • Capacity : 12 MT
  • Effective Max Lift : Upto 3000mm / 3m / 118in
  • Stroke Length : 105mm ± 3mm
  • Testing Pressure : 165 Bar

Important Points

  • 12MT hydraulic tank jacks
  • Third Party Inspection available
  • Suryoday Quality commitment
  • Shipping worldwide

Frequently Asked Questions

What is the maximum tank shell plate width and height that the 12MT jacking system can accommodate?

The standard 12MT hydraulic jacking system is engineered to lift and position steel shell plates with a width (height per tier) ranging from 1.5 meters up to 3.0 meters. The trestle uprights and stay pipe configurations provide stable, vertical tracking throughout the entire lifting cycle.

How does the system ensure the tank remains level during a synchronized lift?

The system connects multiple 12MT lifting cylinders to a centralized hydraulic power pack through a balanced valve manifold network. Each jacking setup can be individually isolated or collectively pressurized. Because the jacks operate on a fixed stroke mechanism (typically 100mm per cycle), the entire circumference lifts uniformly, preventing structural distortion or uneven stress on the tank shell.

What fail-safe features prevent the tank from falling if hydraulic pressure drops or a hose ruptures?

Safety is maintained through a robust mechanical fail-safe grip mechanism built into the jack casing. The upper and lower gripping jaws lock mechanically onto the solid jack rods. In the event of a sudden drop in hydraulic pressure or line failure, the jacks instantly hold the load mechanically, keeping the tank completely stable until the system is serviced.

How do I calculate how many 12MT jacks are required for my specific tank project?

The number of jacking points is determined by the overall diameter and the total weight of the tank shell plus the roof structure.

Additionally, jacks are usually spaced between 1.8m to 3.1 meters apart along the internal circumference of the tank to prevent plate buckling during erection.

For a calculation configuration, contact us to know the quantity of tank jacks and power packs that you will require for your project.

Can this jacking system be reused for different tank diameters, or is it project-specific?

The system is completely modular and highly versatile. The individual 12MT jack units, hydraulic power packs, manifolds, and high-pressure hoses can be easily reconfigured, expanded, or downsized. To adapt the system to a new tank diameter, you simply adjust the total quantity of jacks in the loop and modify the spacing layout of the internal trestle boxes.

With timely maintenance and correct use, the equipment has great ROI.

Request a System Configuration Quote
